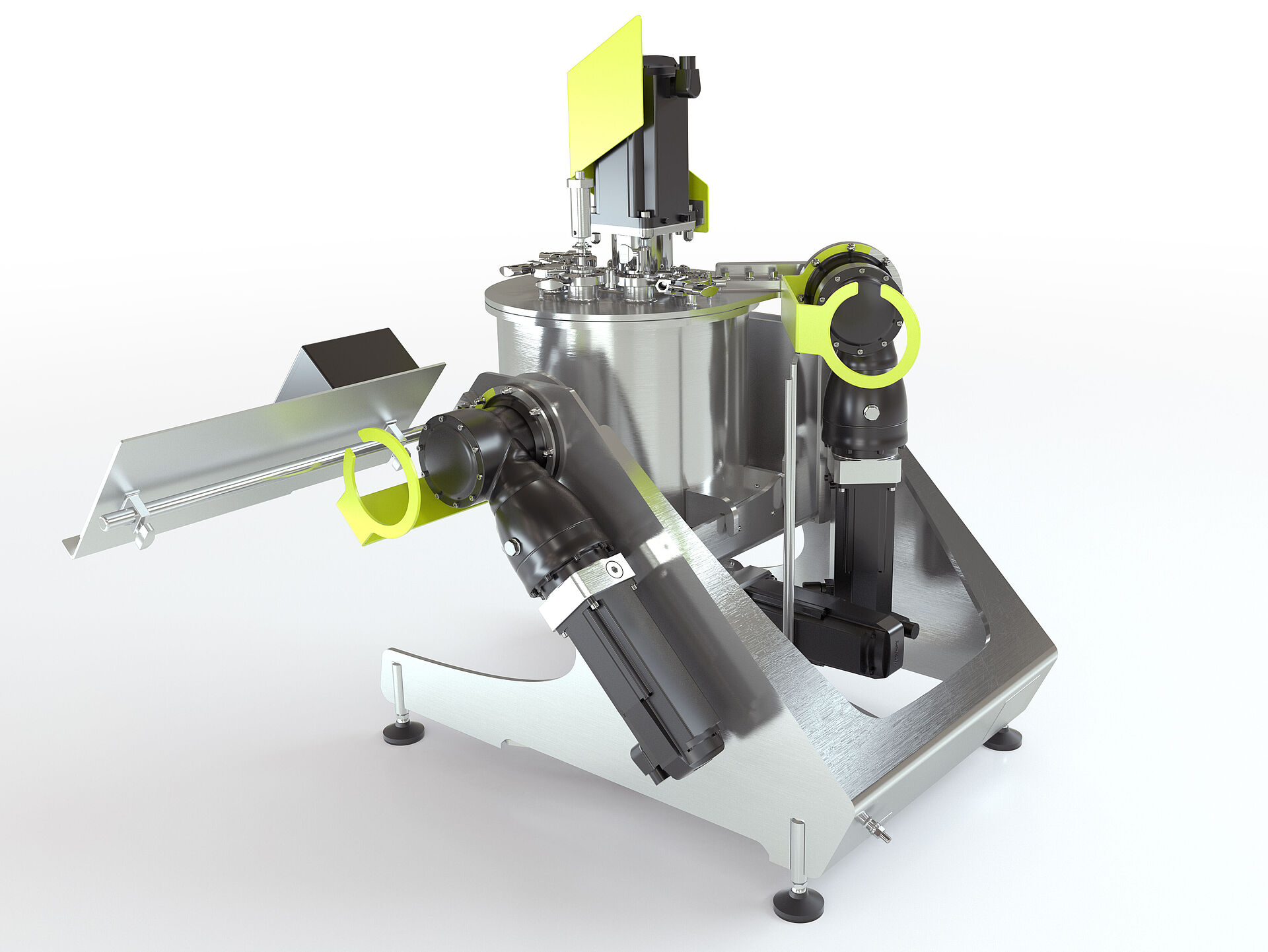

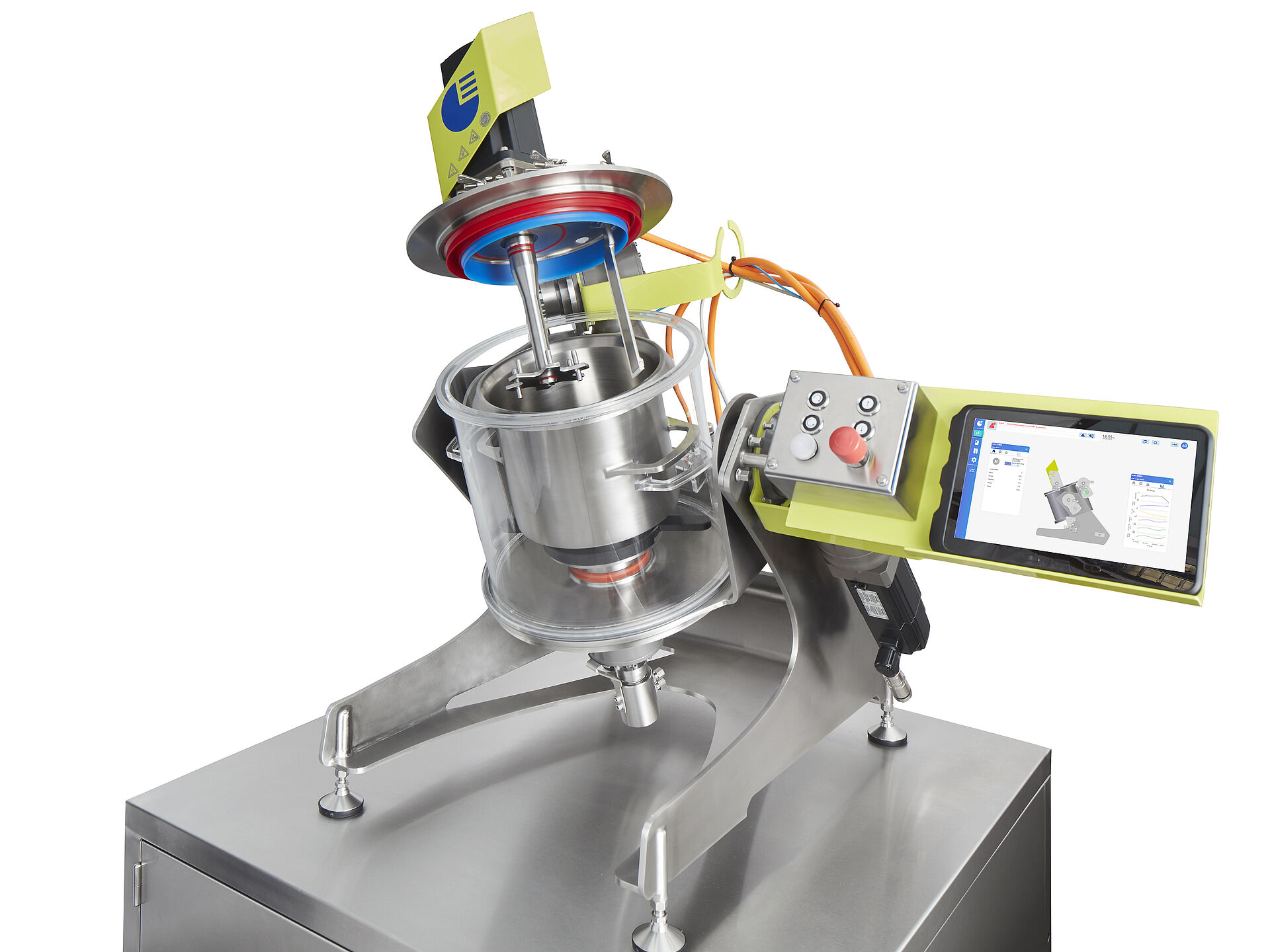

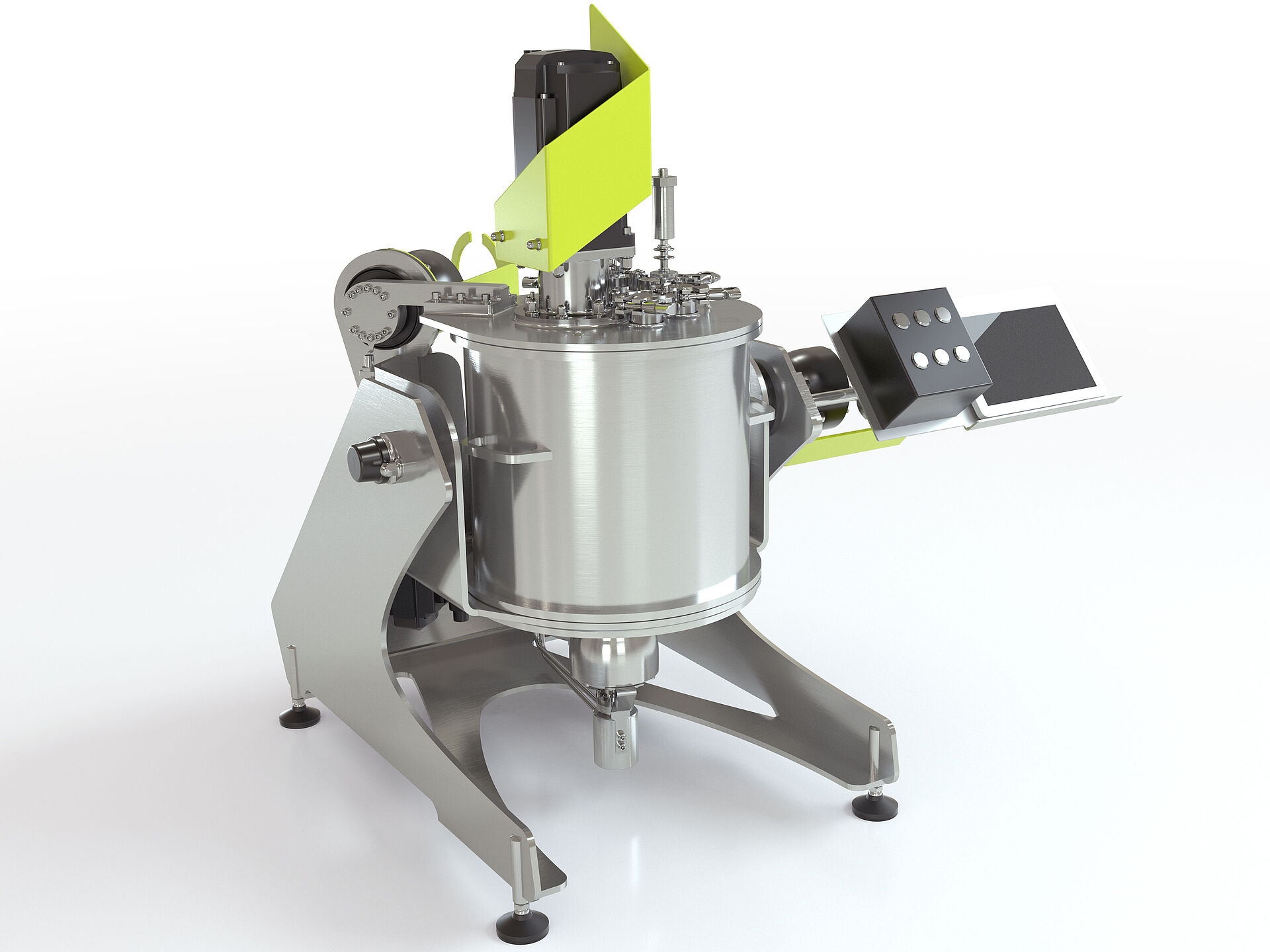

New CleanLine C5
Groundbreaking process technology meets hygienic design

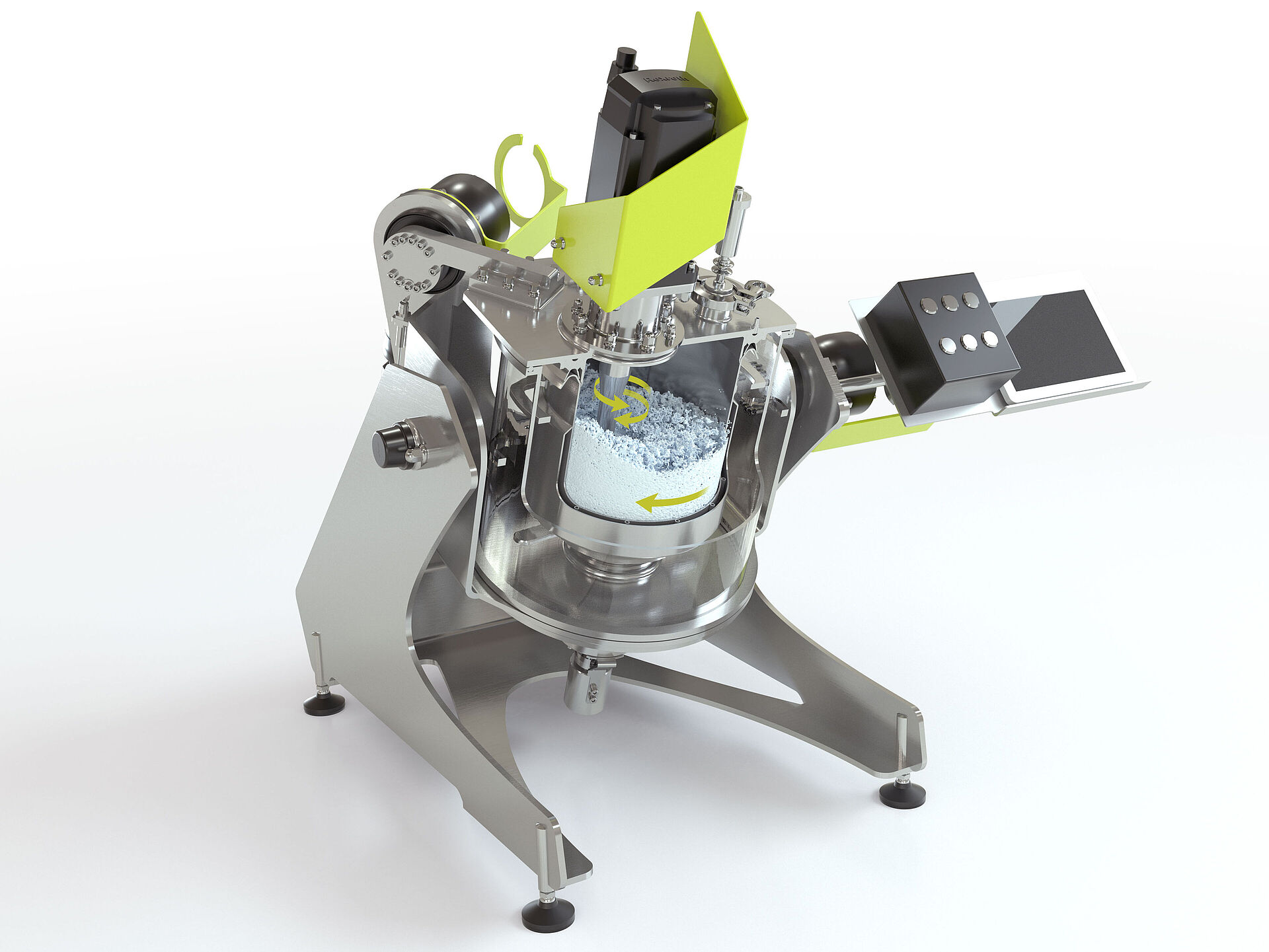

The C5 is the universal one-pot machine that combines an entire development lab in one. Due to the unique mixing principle, all process operations such as mixing, deagglomerating, dispersing, granulating, coating, kneading, and drying and many more are possible with a single machine.
Effective cleaning: Thanks to optimized accessibility, smooth surfaces and selected components, the C5 can be cleaned effectively and reproducibly.
Ergonomic and quick handling: The product contacted components (mixing tools, seals, scrapers, mixing vessels) can be assembled and disassembled in the twinkling of an eye.
Extra flexible: Simple change of mixing tools and parameter adaption allows flexible variation of different production and preparation techniques.
Application
- Gentle to aggressive and deagglomerating mixing depending on the mixing tool speed and type
- Agglomeration and granulation with controlled variation of granule properties such as size distribution and density by adjusting the shear forces - from microgranules up to 5mm diameter
- Temperature controlled by double-jacket design e.g. for melt granulation or temperaturesensitive products
- Kneading and subsequent suspending with good material circulation and complete deagglomeration in both process steps
![](/fileadmin/_processed_/5/2/csm_EIRICH_CleanLine_C5_326623a52f.png)
(pdf, 2 MB)

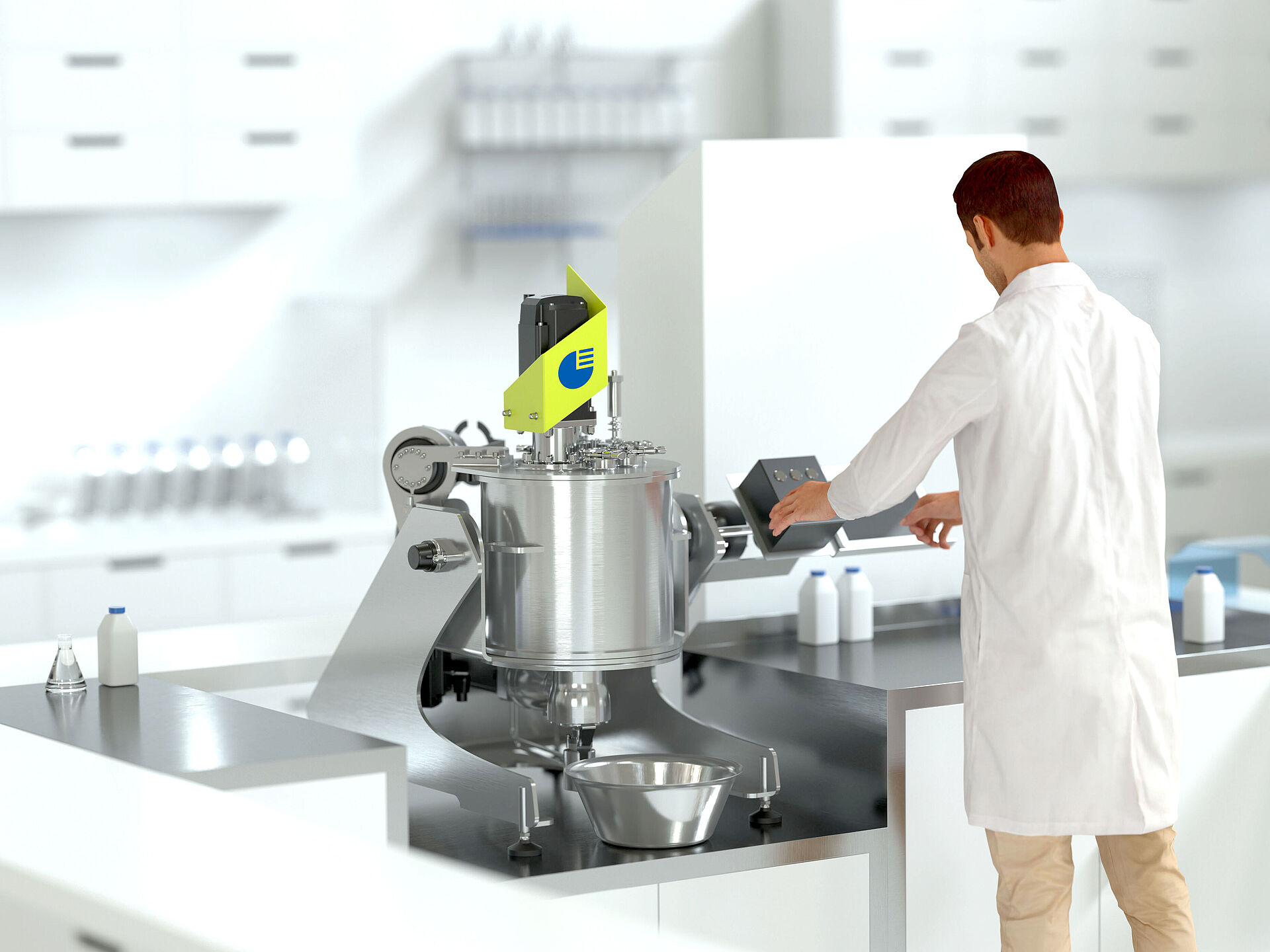

Lab-sized intensive mixer for sanitary application
![](/fileadmin/_processed_/6/3/csm_EIRICH_Laboratory_Mixer_Series_bdabf3e7b3.png)
(pdf, 1 MB)
EIRICH lab mixer series
